SKU: AK12394N
Air Piloted Control Valve; 3-WAY; 2 POS; 3/8" NPT 3-Port (Repl Ride-Air RA224-3)
Product Specifications

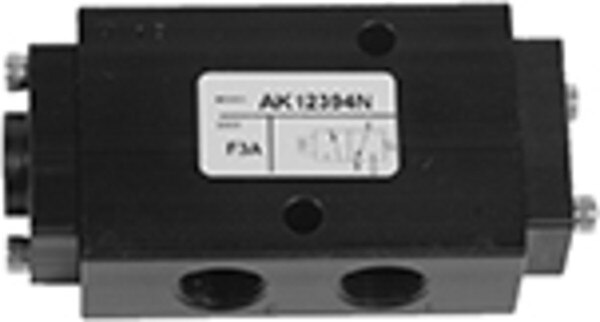

AK12394N Air Piloted Control Valve
- 2 Positions, 3 (3/8" PT) Port Valve
- Air pilot operation, Spring return
- 96 SCFM airflow (at full open)
- Inline, or thru hole mounting
- 200 PSI Max supply
- 40 PSI MInimum for pilot pressure
(Replaces: Ride-Air RA224-3, HD Plus ACW4948, Manac SP-4902, 223-6203, 223-6196, Alkon TD-6220)
SKU: AK12394N
