Type 36 Service Chamber

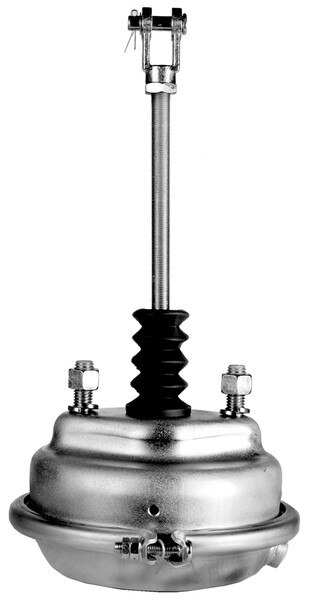

FS-5007 Type 36 Service Chamber

Chamber features fully threaded pushrod 2 x ⅜" NPT air fittings

• Housing Depth: 5"
• Unit Size: 36
• Stroke: 3.0"

Pushrod

• Length (no air): 10 ½"
• Thread UNF: ⅝"-18

Mounting

• Thread UNC: ⅝" -11
• Spacing C to C: 4 ¾"
