SKU: FS-5003
Product Details: All chambers featurefullythreaded pushrods, and (2) 3/8" NPT air fittings
Mounting Thread UNC: 7/16"-14 (Mounting)
Mounting Spacing (Center to Center): 3"
Unit Size: 16
Stroke: 2.25"
Service Chamber Housing Depth: 3-11/16"
Pushrod Length UNF: 1/2"-20 (Pushrod)
Pushrod Length (no air): 10-1/2" (Pushrod)

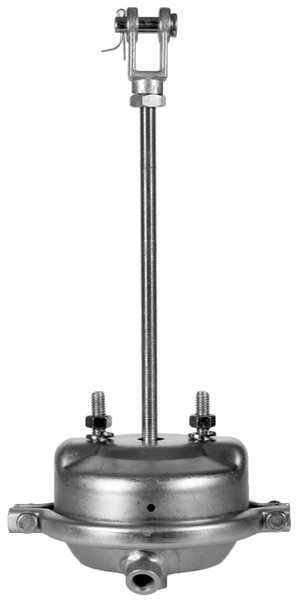

Type 16 Service Chamber
