SKU: AK12392PR
Product Details: Manual operation, with air pilot reset; Detented in the out position; Panel, inline or thru hole mounting; 96 SCFM airflow (atfull open); 200 PSI Max Supply; 40 PSI (Minimum) for Pilot Pressure
Ports: (5) 3/8" PT1/4" PT Pilot

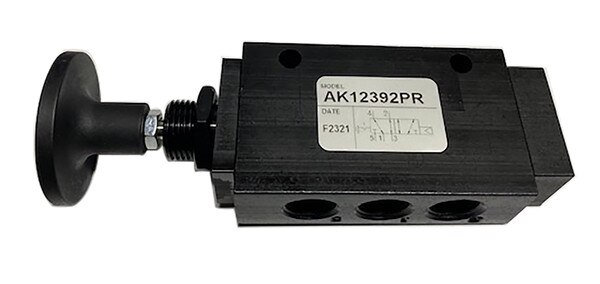

Push-Pull Control Valve; 4-WAY; 2 POS; 3/8" NPT 5-Port; w/pilot (Repl Ride-Air RA222)
Product Specifications
AK12392PR Push-Pull Control Valve; 4-WAY; 2 POS; 3/8" NPT 5-Port; w/pilot (Repl Ride-Air RA222)
SKU: AK12392PR
Product Details: Manual operation, with air pilot reset; Detented in the out position; Panel, inline or thru hole mounting; 96 SCFM airflow (atfull open); 200 PSI Max Supply; 40 PSI (Minimum) for Pilot Pressure
Ports: (5) 3/8" PT1/4" PT Pilot
