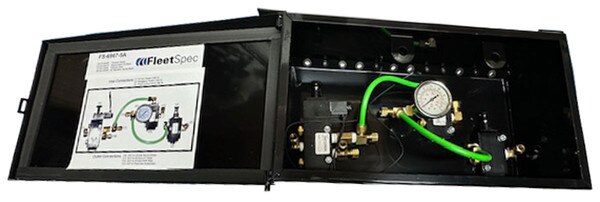

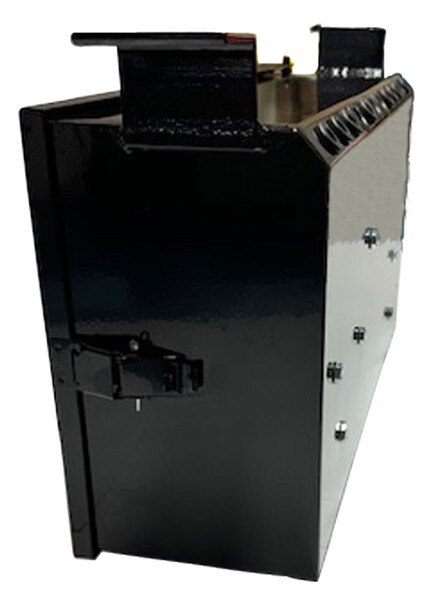

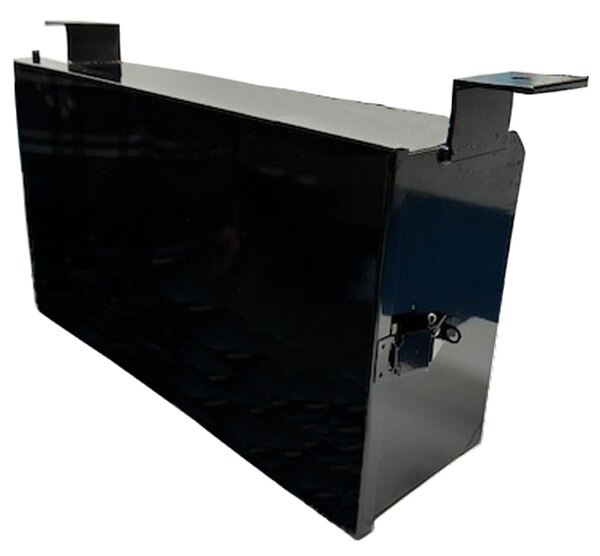

Liftable Steer Axle Control Box (10 x18 IN.) Repl. Manac 072-0561

FS-6967-5A Liftable Steer Axle Control Box (10" x 18")

• Steerable Lift Axle MUST be lifted (Up position) when backing up

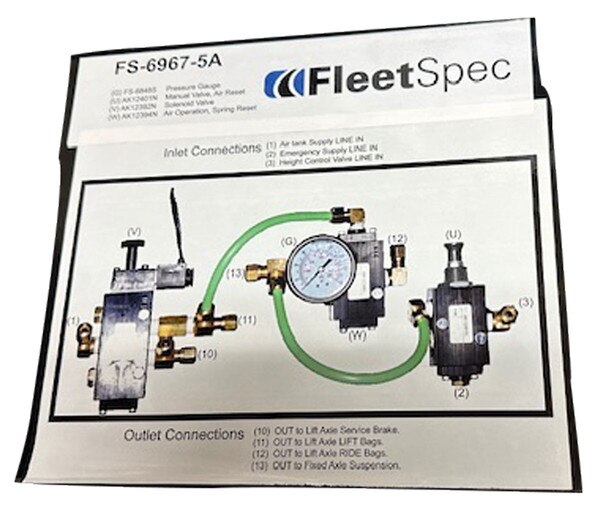

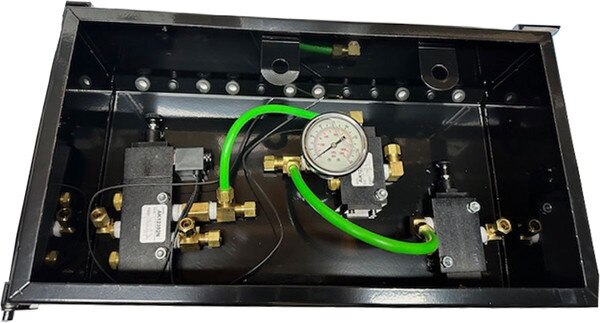

• Controls the lifting and lowering of the Lift Axle, and Ride Bags system dump
• Suspension Height Control Valve controls Air Ride Pressure for ALL axles, including the Lift Axle
• Lockout Valve (A) eliminates tire damage when the Lift Axle is up (Lift Axle Wheels turn freely)
• Silicone filled, Stainless Steel Pressure Gauge, 0 to 160 PSI
• REQUIRES Control Box FS-6967-8A to control the Torpress Air Bag

(Replaces: Manac 072-0561)
