Type 24 LS Service Chamber

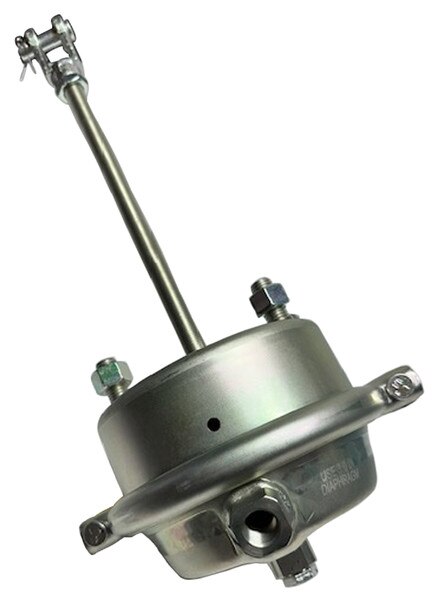

FS-5005L Type 24 LS Service Chamber

Chamber features fully threaded pushrod and 2 x ⅜" NPT air fittings

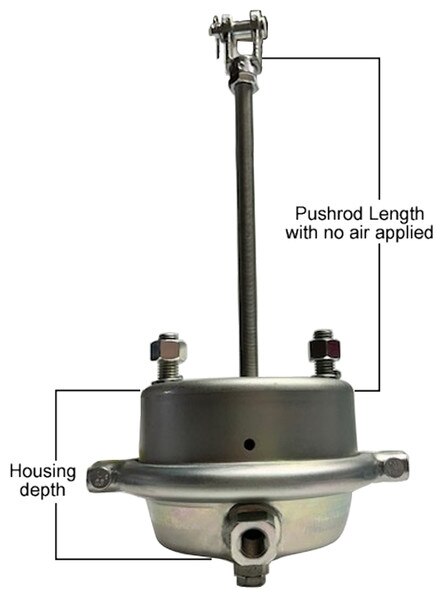

• Housing Depth: 4 ½"
• Unit Size: 24 LS
• Stroke: 3.0"

Pushrod:

• Length (no air): 10½"
• Thread UNF: ⅝"-18

Mounting:

• Thread UNC: ⅝"-11
• Spacing C to C: 4¾"
