SKU: FS-5002
Product Details: All chambers featurefullythreaded pushrods, and (2) 3/8" NPT air fittings
Mounting Thread UNC: 7/16"-14 (Mounting)
Mounting Spacing (Center to Center): 3"
Unit Size: 12
Stroke: 1.75"
Service Chamber Housing Depth: 3-3/4"
Pushrod Length UNF: 1/2"-20 (Pushrod)
Pushrod Length (no air): 10-1/2" (Pushrod)

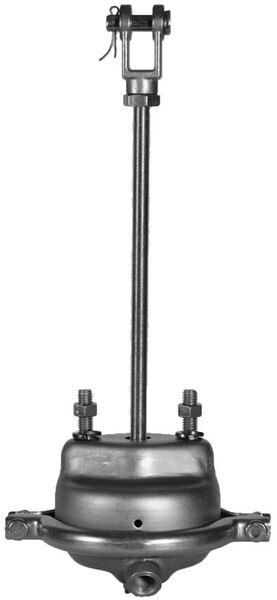

Type 12 Service Chamber
