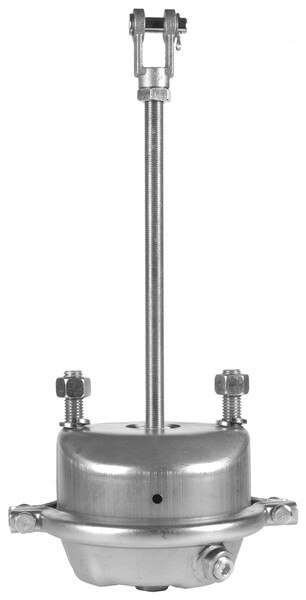

Type 20 Service Chamber

FS-5004 Type 20 Service Chamber

Chamber features fully threaded pushrod and 2 x 3/8" NPT air fittings

• Housing Depth: 4 5/16"
• Unit Size: 20
• Stroke: 2.25"

Pushrod:

• Length (no air): 10 ½"
• Thread UNF: 5/8"-18

Mounting:

• Thread UNC: 5/8"-11
• Spacing C to C: 4 ¾"
