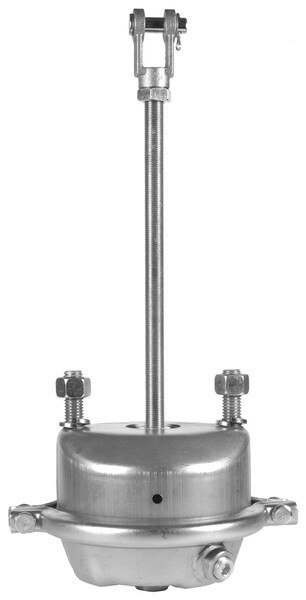

Type 20 LS Service Chamber

FS-5004L Type 20 LS Service Chamber

Chamber features fully threaded pushrod, and 2 x ⅜" NPT air fittings

• Housing Depth: 4 5/16"
• Unit Size: 20LS
• Stroke: 2.50"

Pushrod

• Length (no air): 10 ½"
• Thread UNF: ⅝"-18

Mounting

• Thread UNC: ⅝" - 11
• Spacing C to C: 4 ¾"
