Type 30 Service Chamber

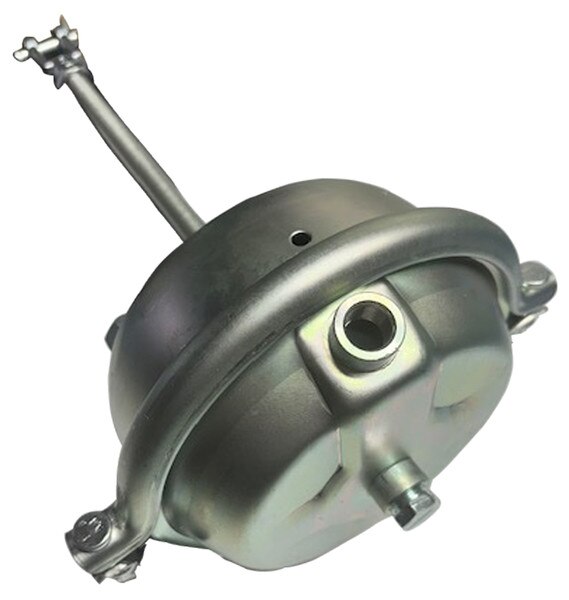

FS-5006 Type 30 Service Chamber

Chamber features fully threaded pushrod and 2 x ⅜" NPT air fittings

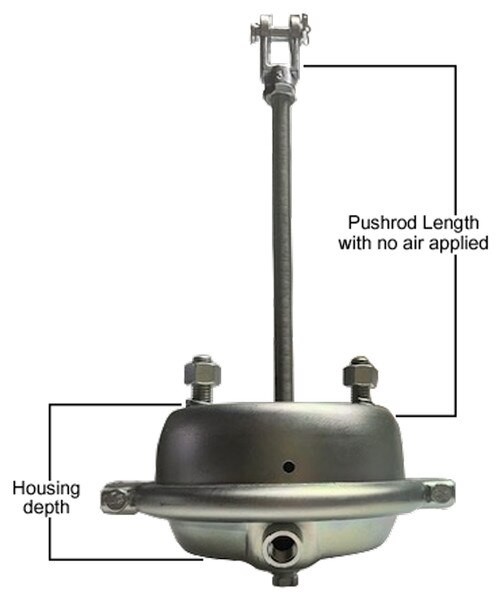

• Housing Depth: 4"
• Unit Size: 30
• Stroke: 2.50"

Pushrod:

• Length (no air): 10½"
• Thread UNF: ⅝"-18

Mounting:

• Thread UNC: ⅝"-11
• Spacing C to C: 4¾"
