Type 30 LS Service Chamber

FS-5006L Type 30 LS Service Chamber

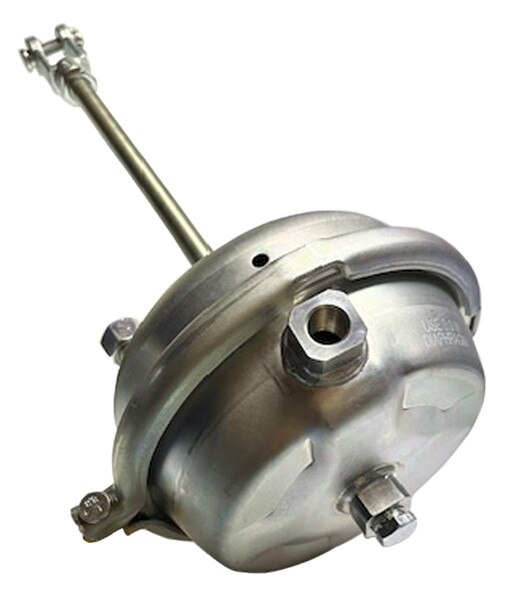

Chamber features fully threaded pushrod and 2 x ⅜" NPT air fittings

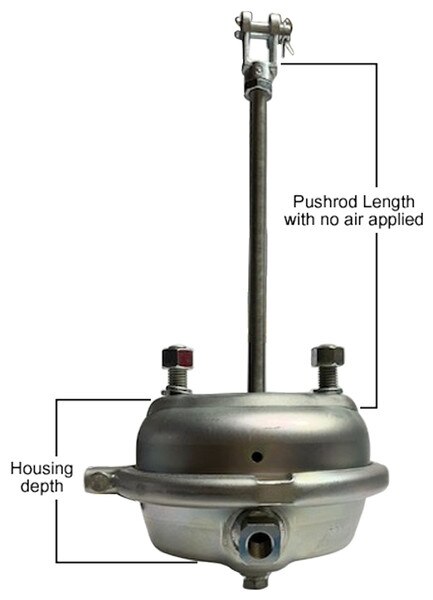

• Housing Depth: 4½"
• Unit size: 30LS
• Stroke: 3.0"

Pushrod:

• Length (no air): 10½"
• Thread UNF: ⅝"-18

Mounting:

• Thread UNC: ⅝"-11
• Spacing C to C: 4¾"
