Type 09 Service Chamber

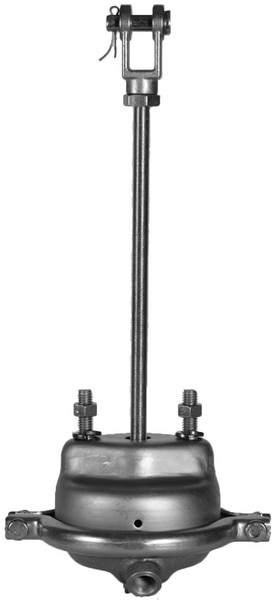

FS-5001 Type 09 Service Chamber

Chamber features fully threaded pushrod, and 2 x ⅜" NPT air fittings

• Housing Depth: 3 ½"
• Unit Size: 9
• Stroke: 1.75"

Pushrod:

• Length (no air): 10 ½"
• Thread UNF: 1/2" - 20

Mounting:

• Thread UNC: 7/16" -14
• Spacing C to C: 3"
